• Air conditioning, single-zone manual
• Air vents, rear (Not available with Regular Cab model.)
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone connectivity to vehicle infotainment system
• Brake lining wear indicator
• Door locks, power

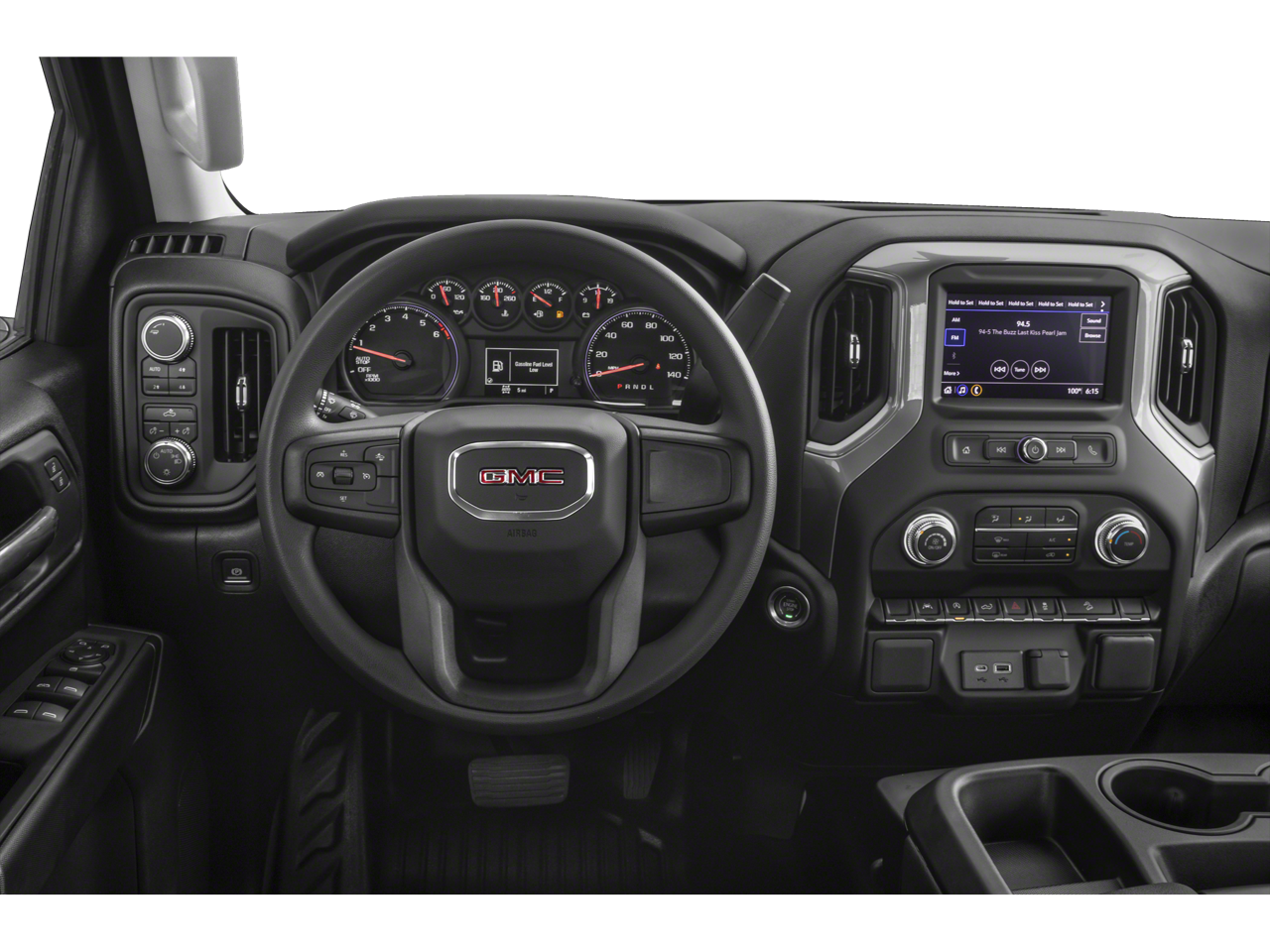

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display, located in radio display
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Mirror, inside rearview, manual tilt
• Power outlet, front auxiliary, 12-volt
• Remote Keyless Entry
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

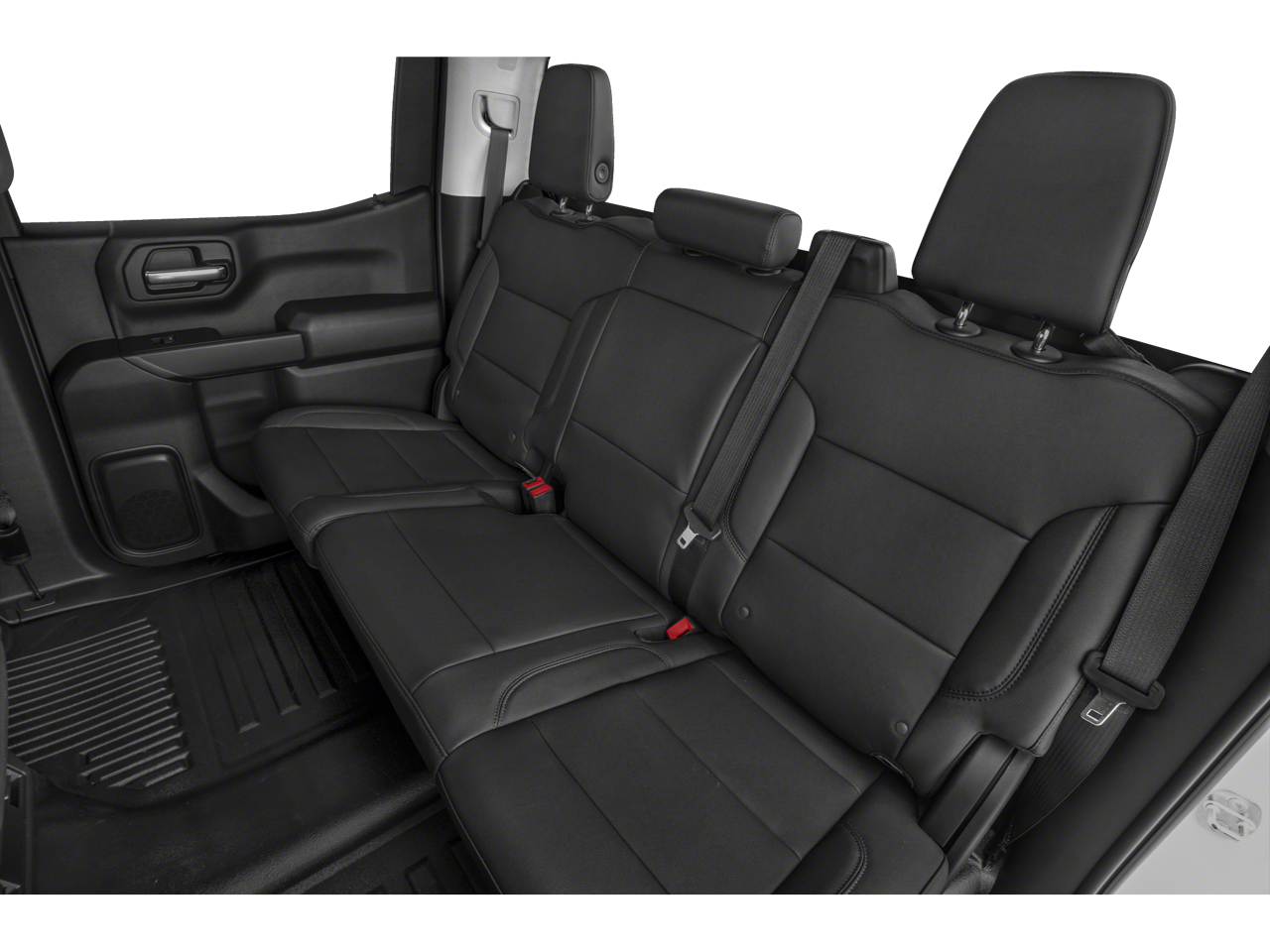

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab model.)

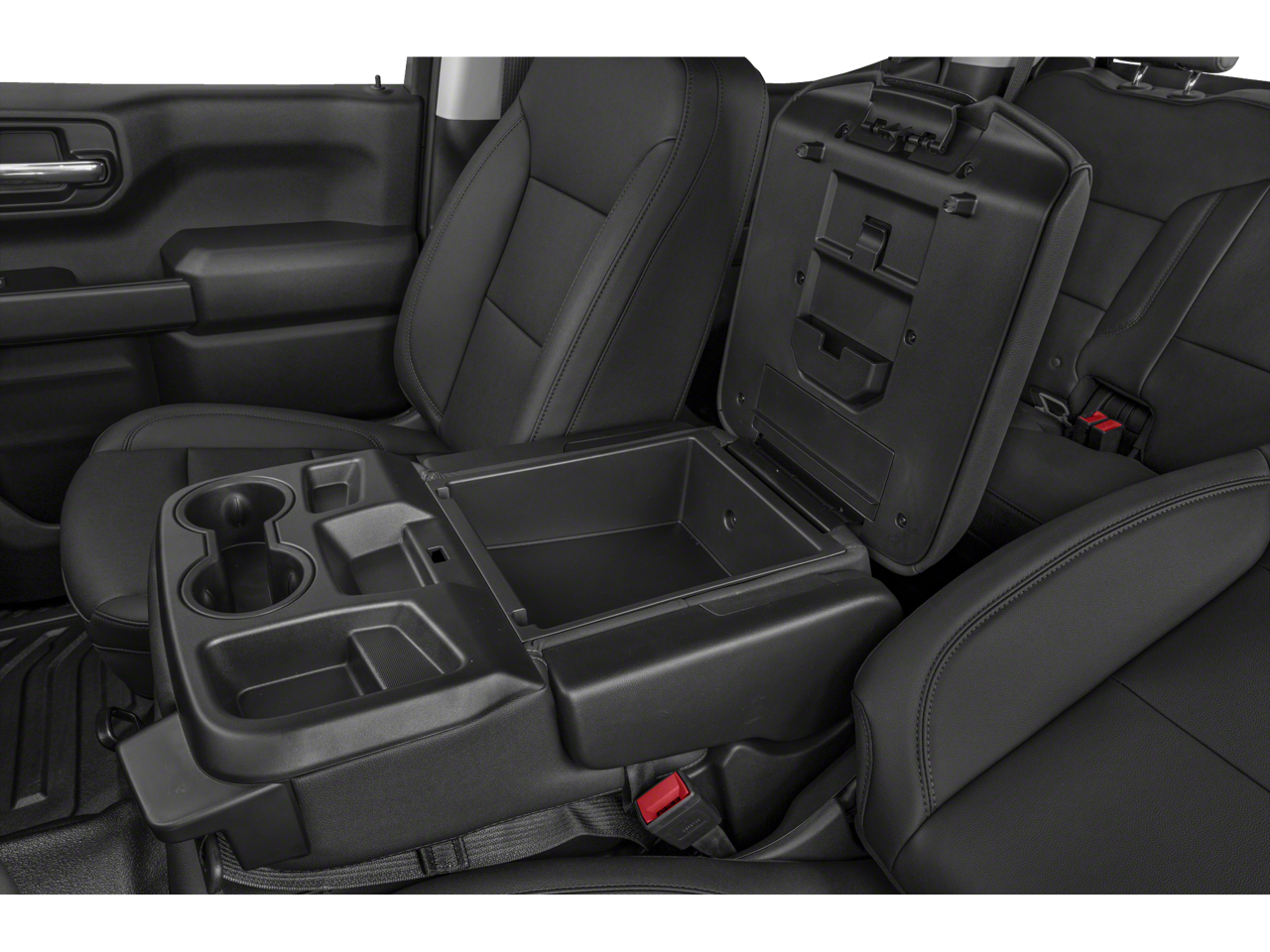

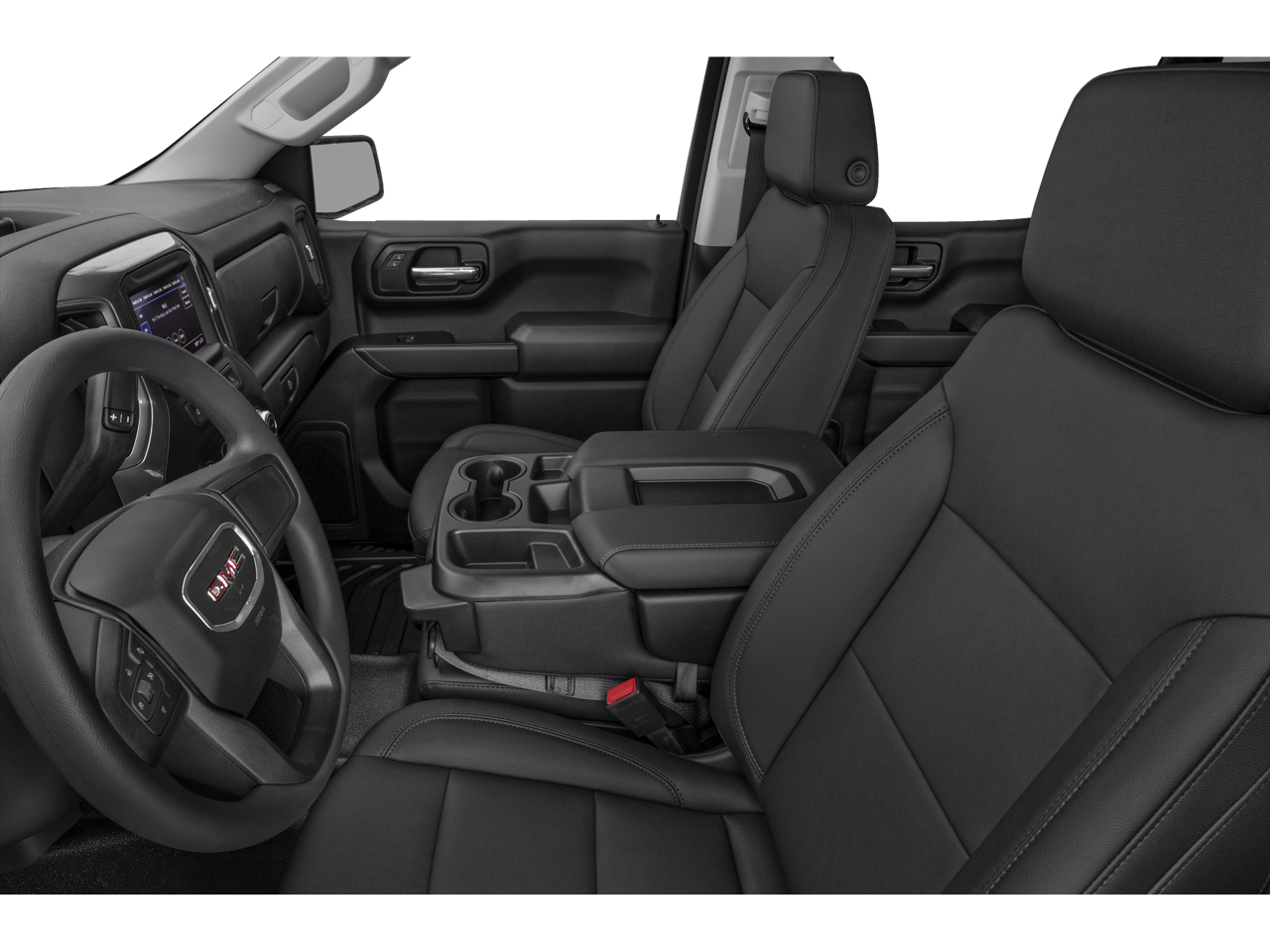

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Steering wheel, urethane
• USB Ports, 2, Charge/Data ports located on instrument panel
• Window, power front, passenger express down
• Windows, power front, drivers express up/down
• Windows, power rear, express down (Not available on Regular Cab models.)

• Automatic Stop/Start
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Capless Fuel Fill
• Cargo tie downs (12), fixed
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Exhaust, single outlet
• Frame, fully-boxed, hydroformed front section
• Push Button Start
• Rear wheel drive
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Suspension Package, Standard

• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Emergency Braking (Included and only available with (PDI) GMC Pro Safety.)
• Buckle to Drive (Included and only available with (PDI) GMC Pro Safety.)
• Daytime Running Lamps, LED signature lighting
• Following Distance Indicator (Included and only available with (PDI) GMC Pro Safety.)
• Forward Collision Alert (Included and only available with (PDI) GMC Pro Safety.)
• Front Pedestrian Braking (Included and only available with (PDI) GMC Pro Safety.)
• Lane Keep Assist with Lane Departure Warning (Included and only available with (PDI) GMC Pro Safety.)
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Tire Pressure Monitor System, auto learn includes Tire Fill Alert (does not apply to spare tire)

NOT EQUIPPED WITH STEERING COLUMN LOCK, SEE DEALER FOR DETAILS

• (Certain vehicles built on or after 4-4-2022 will be forced to include (R7N) Not Equipped with Steering Column Lock
• which removes Steering Column Lock. See dealer for details.)

TIRE, SPARE 255/70R17 ALL-SEASON, BLACKWALL

• (STD)

WHEELS, 17" X 8" (43.2 CM X 20.3 CM) PAINTED STEEL, SILVER

• (STD)

TIRES, 255/70R17 ALL-SEASON, BLACKWALL

• (STD)

PRO PREFERRED EQUIPMENT GROUP

• includes standard equipment

BED LINER, SPRAY-ON

• Pickup bedliner with GMC logo

GVWR, 6800 LBS. (3084 KG)

• (STD)

NOT EQUIPPED WITH USB PORTS REAR, SEE DEALER FOR DETAILS

• (Beginning with the start of production certain vehicles will be forced to include (RFO) Not Equipped with USB ports rear.)

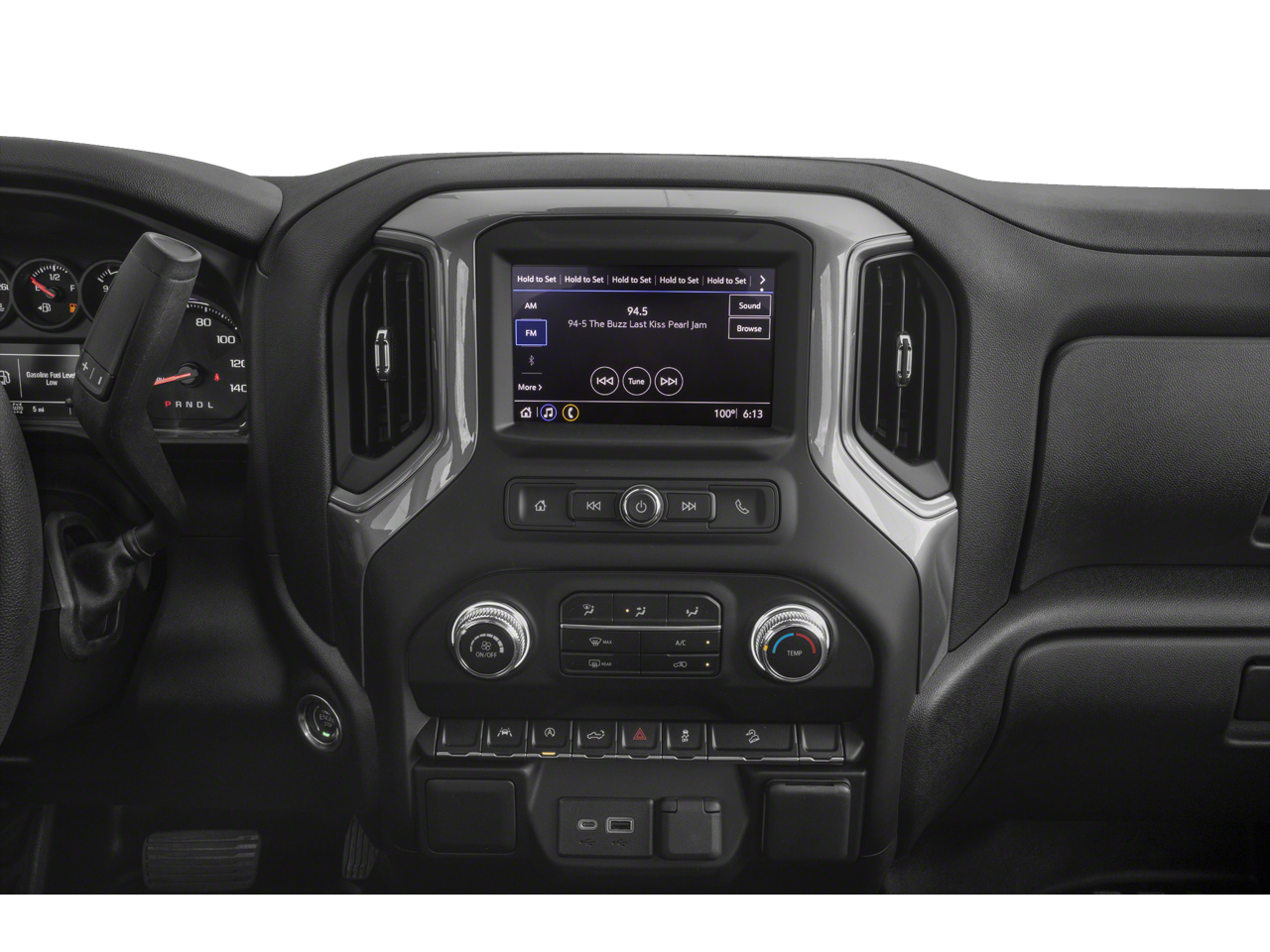

AUDIO SYSTEM, GMC INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO

• with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones (STD)

POWER OUTLET, BED MOUNTED, 120-VOLT

• (400 watts shared with (KI4) instrument panel mounted power outlet)

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with covered armrest storage and under-seat storage (lockable) (STD)

TRANSMISSION, 8-SPEED AUTOMATIC, (COLUMN SHIFTER) ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

USB PORTS, (2) CHARGE-ONLY, REAR

• Beginning with the start of production certain vehicles will be forced to include (RFO) Not Equipped with USB ports rear.)

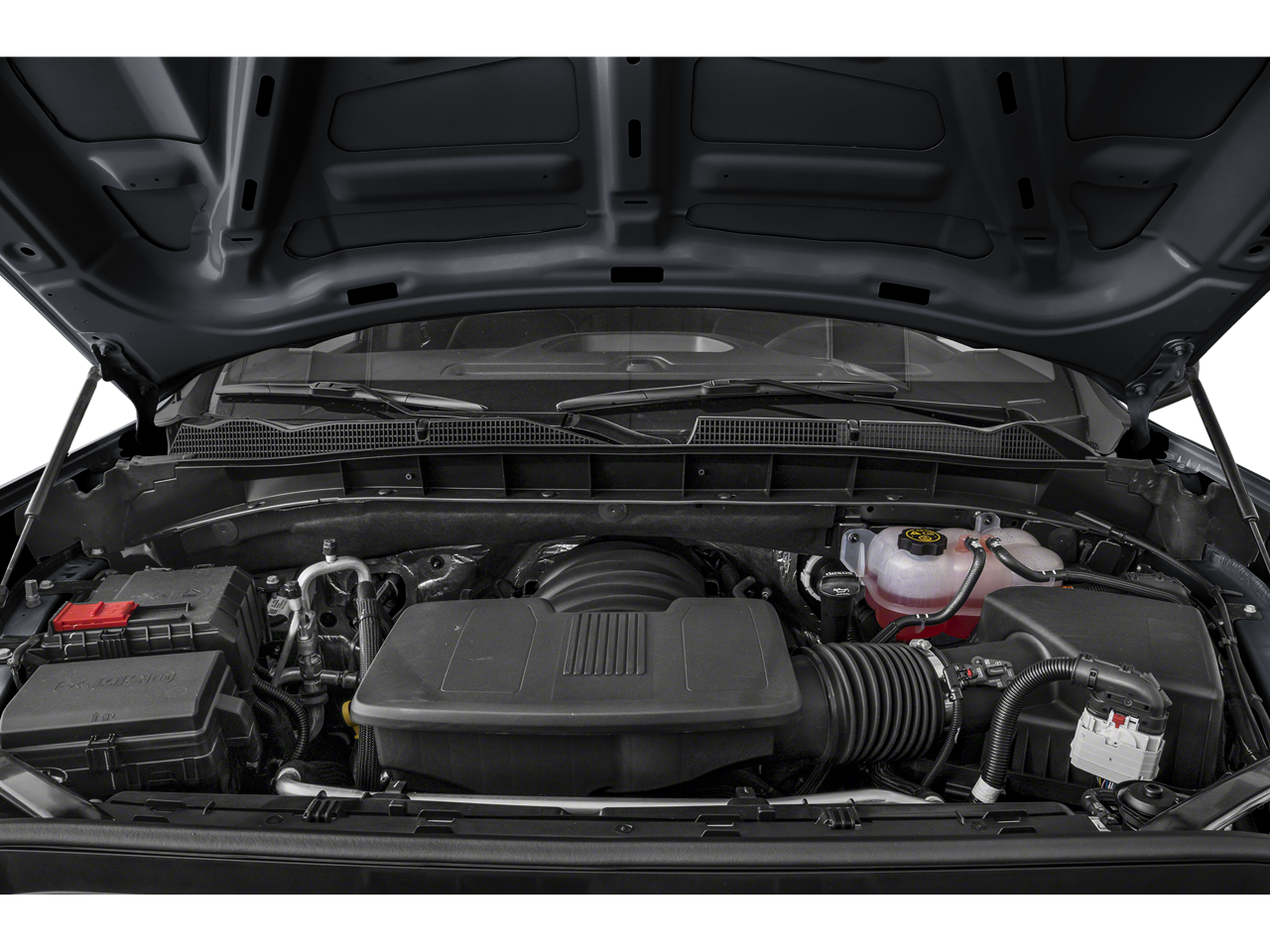

ENGINE, 2.7L TURBO HIGH-OUTPUT

• (310 hp [231 kW] @ 5600 rpm
• 430 lb-ft of torque [583 Nm] @ 3000 rpm) Includes (KW5) 220-amp alternator.) (STD)

LED CARGO AREA LIGHTING

• located in cargo bed activated with switch on center switch bank or key fob

• NOT EQUIPPED WITH STEERING COLUMN LOCK SEE DEALER FOR DETAILS (Certain vehicles built on or after 4-4-2022 will be forced to include (R7N) Not Equipped with Steering Column Lock which removes Steering Column Lock. See dealer for details.)
• TIRE SPARE 255/70R17 ALL-SEASON BLACKWALL (STD)
• WHEELS 17" X 8" (43.2 CM X 20.3 CM) PAINTED STEEL SILVER (STD)
• LICENSE PLATE KIT FRONT
• CRUISE CONTROL STEERING WHEEL-MOUNTED
• TIRES 255/70R17 ALL-SEASON BLACKWALL (STD)
• PRO PREFERRED EQUIPMENT GROUP includes standard equipment
• POWER OUTLET INSTRUMENT PANEL 120-VOLT (400 watts shared with (KC9) bed mounted power outlet) (Beginning with the start of production certain vehicles will be forced to include (RFO) Not Equipped with USB ports rear. Includes (UBI) 2-USB charge ports.
• BED LINER SPRAY-ON Pickup bedliner with GMC logo
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• GVWR 6800 LBS. (3084 KG) (STD)
• DEFOGGER REAR-WINDOW ELECTRIC
• NOT EQUIPPED WITH USB PORTS REAR SEE DEALER FOR DETAILS (Beginning with the start of production certain vehicles will be forced to include (RFO) Not Equipped with USB ports rear.)
• AUDIO SYSTEM GMC INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones (STD)
• POWER OUTLET BED MOUNTED 120-VOLT (400 watts shared with (KI4) instrument panel mounted power outlet)
• AUTO-LOCKING REAR DIFFERENTIAL
• SEATS FRONT 40/20/40 SPLIT-BENCH with covered armrest storage and under-seat storage (lockable) (STD)
• GLASS DEEP-TINTED
• CONVENIENCE PACKAGE includes (QT5) EZ Lift power lock and release tailgate (AKO) tinted glass (UF2) LED cargo bed lighting (C49) rear-window defogger (K34) cruise control and (DLF) outside power mirrors.
• TRANSMISSION 8-SPEED AUTOMATIC (COLUMN SHIFTER) ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• USB PORTS (2) CHARGE-ONLY REAR Beginning with the start of production certain vehicles will be forced to include (RFO) Not Equipped with USB ports rear.)
• ENGINE 2.7L TURBO HIGH-OUTPUT (310 hp [231 kW] @ 5600 rpm 430 lb-ft of torque [583 Nm] @ 3000 rpm) Includes (KW5) 220-amp alternator.) (STD)
• JET BLACK VINYL SEAT TRIM
• SUMMIT WHITE
• REAR AXLE 3.42 RATIO
• LED CARGO AREA LIGHTING located in cargo bed activated with switch on center switch bank or key fob
• ALTERNATOR 220 AMPS
• TAILGATE GATE FUNCTION MANUAL WITH EZ LIFT includes power lock and release includes hitch area light
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE
• Lane Departure Warning
• Lane Keeping Assist
• Front Collision Mitigation
• Front Collision Warning
• Automatic Highbeams
• Turbocharged
• High Output
• Keyless Start
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tires - Front All-Season
• Tires - Rear All-Season
• Daytime Running Lights
• LED Headlights
• Automatic Highbeams
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Power Windows
• Power Windows
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• MP3 Capability
• Auxiliary Audio Input
• Power Outlet
• A/C
• Front Collision Mitigation
• Front Collision Warning
• Front Collision Mitigation
• Front Collision Warning
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera
• Front Collision Warning
• Lane Departure Warning
• Lane Keeping Assist
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2720
• Curb Weight - Rear (lbs): 1894
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Combined Wt Rating (lbs): 14500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2175
• Maximum Trailering Capacity (lbs): 9600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): 3700
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3700
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QBN
• Rear Tire Order Code: QBN
• Spare Tire Order Code: QBR
• Front Tire Size: 255/70R17
• Rear Tire Size: 255/70R17
• Spare Tire Size: 255/70R17
• Front Tire Capacity (lbs): 3700
• Rear Tire Capacity (lbs): 3800
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.43
• Length, Overall (in): 231.92
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.49
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.89
• Ground Clearance, Rear (in): 7.89
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary

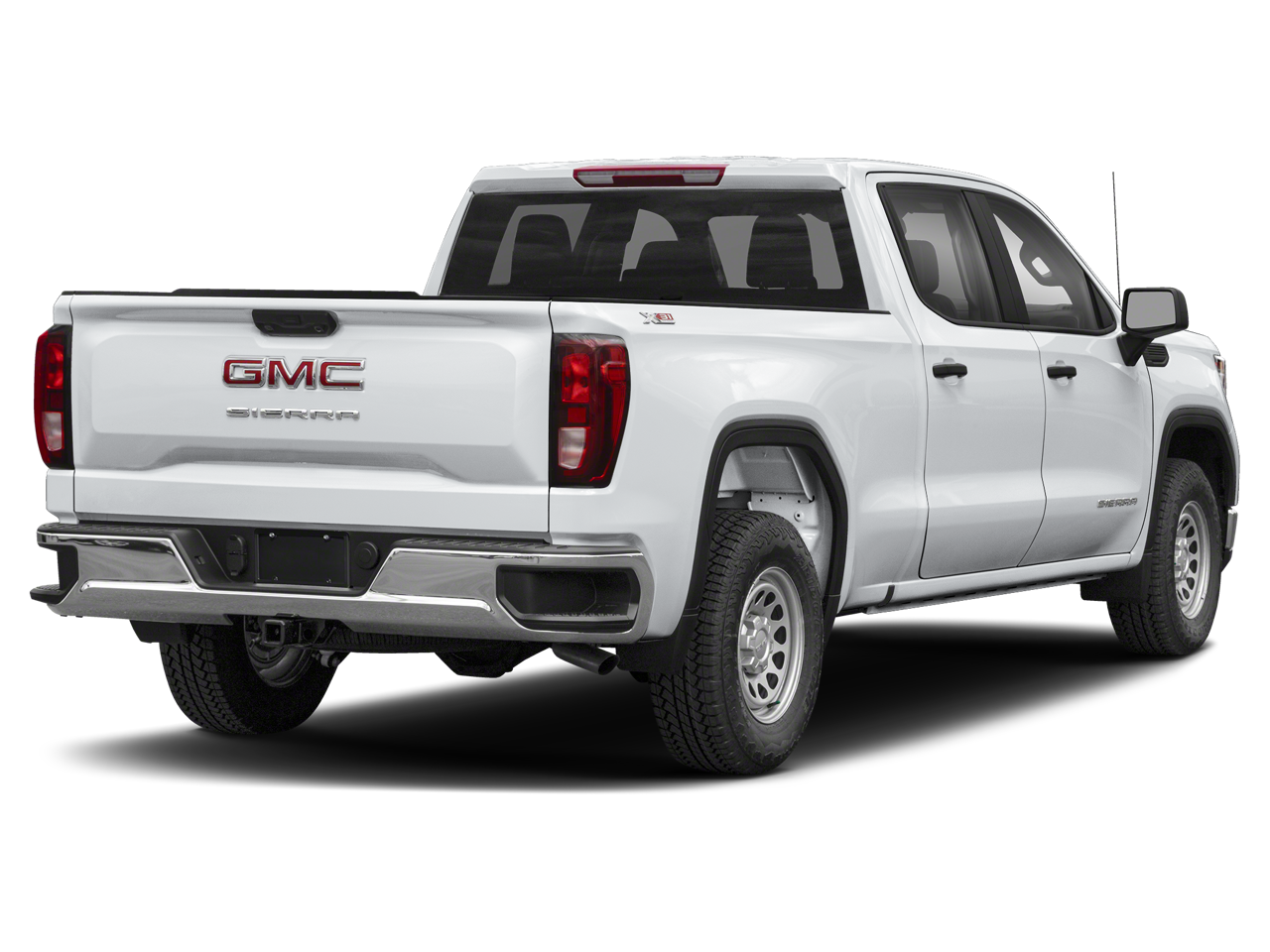

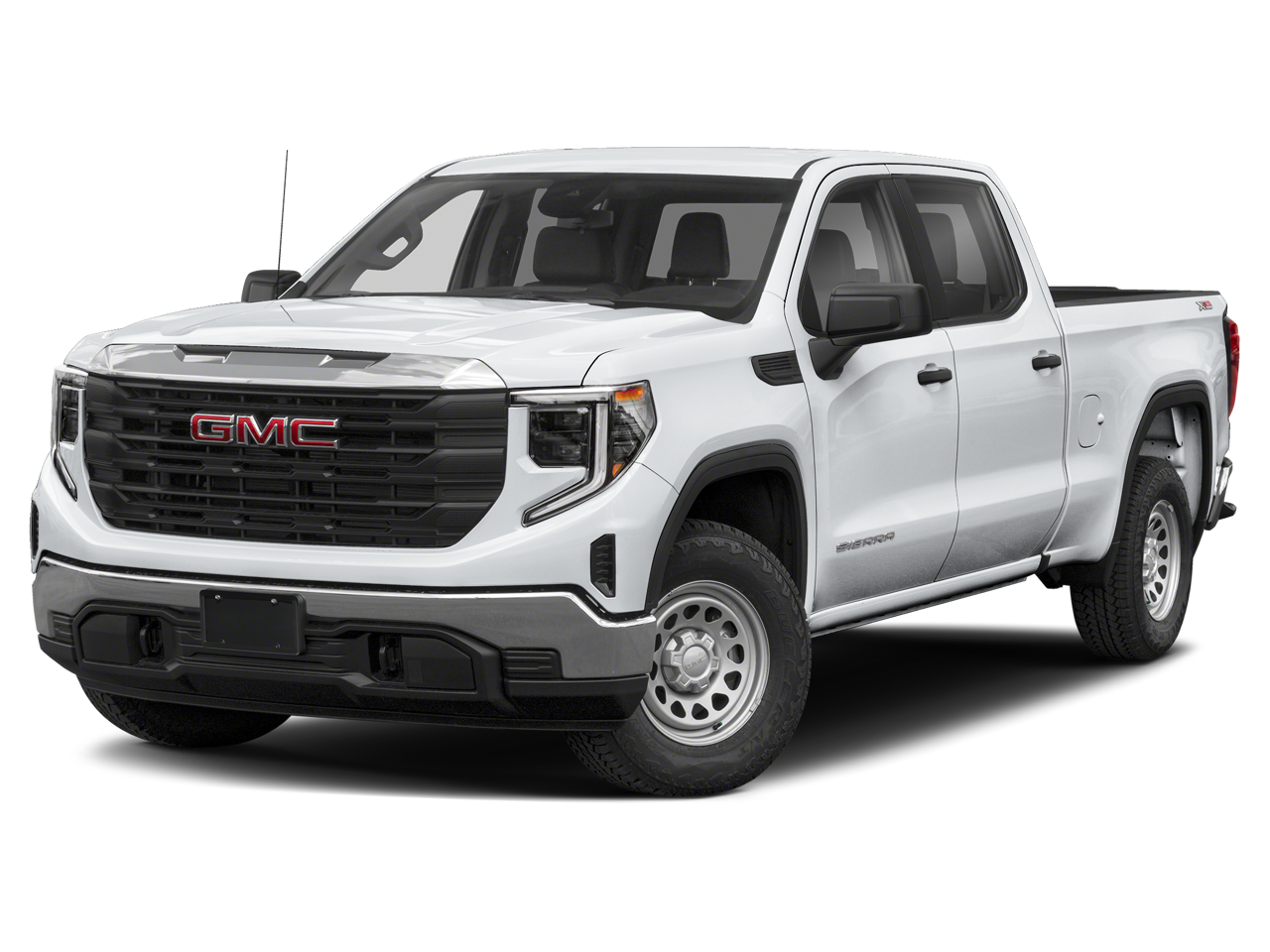

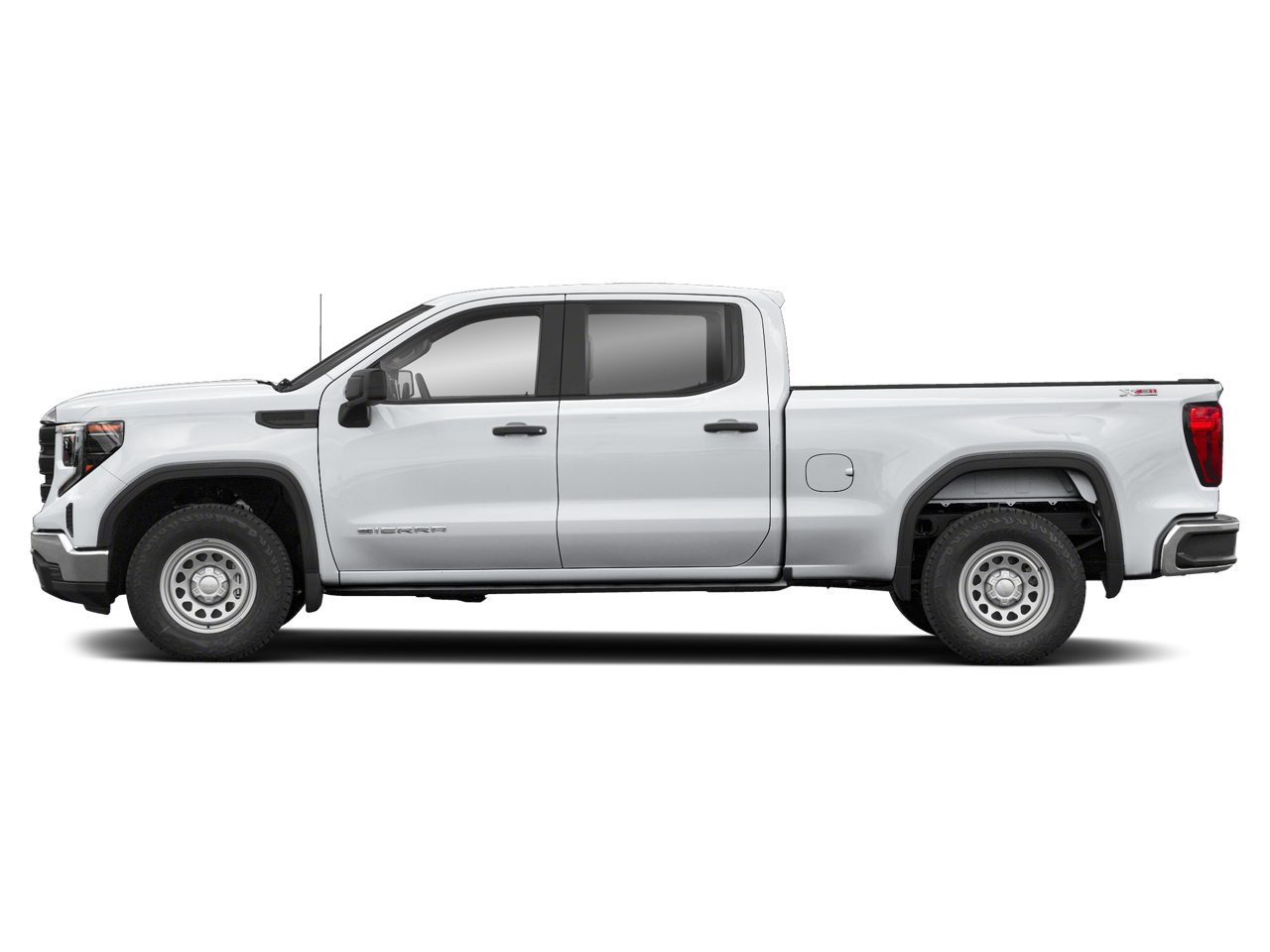

• Vehicle Name: GMC Sierra 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.8
